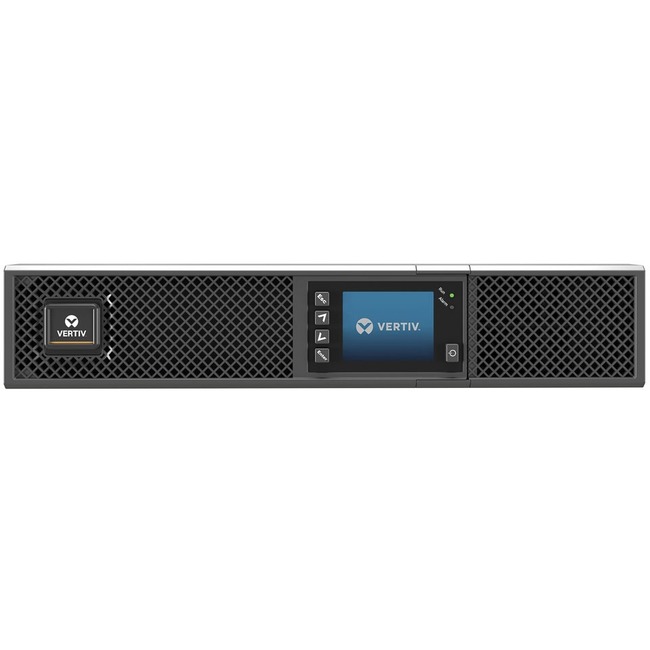

Vertiv Liebert GXT5 UPS - 1000VA/1000W 120V | Online Rack Tower Energy Star
Vertiv Liebert GXT5 UPS - 1000VA/1000W 120V | Online Rack Tower Energy Star - Double Conversion| 2U| Optional RDU101 Card| Color/Graphic LCD| 3-Year Warranty
| $1,236.49 | Retail $1,578.00 |
- Reliable, easy-to-manage power protection and battery backup with 1000VA (1000W) capacity.
- Highest power factor available on standard input connections.
- Four individual programmable output receptacle for device control and management for optimum battery usage.
- Its user-friendly interface includes color graphic display with gravity sensing feature.
- It is 2019 ENERGY STAR® 2.0 certified and has higher operating efficiency in standard and eco-mode.
By:
Liebert
Manufacturer:
Vertiv
Product ID:
62043
Item:
GXT5-1000LVRT2UXL
UPC Code:
767041026283
Our Part #
6QL392
Condition
New
$1,236.49EA
$1,578.00
$1,578.00
Availability
Only 607 Left In Stock
Product description
Vertiv Liebert GXT5 UPS - 1000VA/1000W 120V | Online Rack Tower Energy Star - Double Conversion| 2U| Optional RDU101 Card| Color/Graphic LCD| 3-Year Warranty
Double Conversion| 2U| Optional RDU101 Card| Color/Graphic LCD| 3-Year Warranty
Specifications
Backup/Run Time With External Battery Cabinet (Full Load)
28.50 Minute
Backup/Run Time With External Battery Cabinet (Half Load)
1.08 Hour
Environmental Sensors
Temperature Sensor
Environmental Sensors
Leak Detection Sensor
Environmental Sensors
Humidity Sensor
Load Capacity (VA)
1000 VA
Load Capacity (W)
1000 W
Maximum Operating Elevation
9842.52 ft
Maximum Storage Elevation
49212.60 ft
Number of External Battery Cabinets
1
Phase
Single Phase
Receptacle Detail
6 x NEMA 5-15R
Storage Temperature
-4°F (-20°C) - 140°F (60°C)
UPC Alternates
767041026283 818275802683
User Selectable Output
Typical 120V User Selectable Output: 110/115/120/125VAC (user-configurable); ±3%
Utility (AC) Mode Overload
- >200% for 250ms
- 150- 200% for 50 seconds
- 125- 150% for 60 seconds
- 105-125% for 60 seconds
Waveform Type
Pure Sine Wave
Additional Information
- Operating Temperature°F (°C):+32 to +104 (0 to 40)
- Storage Temperature°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C.
- Relative Humidity:0% to 95% non-condensing
- Audible Noise:
- <46dBA max @ 3 ft. (1m) front and sides
- < 43dBA at 3 ft. (1m) rear
Application/Usage
IT Equipment
Application/Usage
Mission Critical Equipment
Assembly Required
No
Backup/Run Time (Full Load)
6 Minute
Backup/Run Time (Half Load)
15 Minute
Battery Characteristics
Valve-regulated Non-spillable
Battery Chemistry
Lead Acid
Battery life
5 Year
Battery Size
12V
Brand Name
Liebert
Certifications & Standards
- UL1778 4th Ed.
- FCC Part 15 Class A
- ANSI C62.41 Cat. B
- ISTA 1A
Circuit Breaker
Yes
Cord Length
10 ft
Country of origin
China
Depth
15.7"
Environmental Certification
RoHS 2
Environmental Certification
REACH
Environmental Certification
RoHS
Environmental Certification
WEEE
Form factor
Rack/Tower
Height
3.4"
Input current
10 A
Input frequency
70 Hz
Input voltage
120 V AC
Input Voltage Range
60 V AC - 150 V AC
Limited Warranty
3 Year
Load Capacity
1000 VA/1000 W
Manufacturer
Vertiv
Manufacturer Part Number
GXT5-1000LVRT2UXL
Manufacturer Website Address
http://www.vertiv.com/
Marketing Information
The Vertiv Liebert GXT5 UPS with a capacity of 1000VA/1000W is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online double conversion technology the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.
Marketing Information
The Vertiv Liebert GXT5 UPS with a capacity of 1000VA/1000W is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online double conversion technology the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.
Maximum Operating Temperature
104°F (40°C)
Number of Batteries
3
Output current
8.30 A
Package Contents
- GXT5 1000VA 120V UPS
- 4 Post Rack Mounting
- Tower Stand
- USB Cable
- User Guide
- Safety Instruction Manual
Plug/Connector Type
NEMA 5-15P
Product color
Black
Product Name
GXT5 1000VA 120V UPS
Product Series
GXT5
Product Type
Dual Conversion Online UPS
Rack Height
2U
Receptacle Type
NEMA 5-15R
Software Included
Free Download - Power Insight 2.2
Status Indicators
Color LCD
Transfer Time
0 ns
Typical Battery Recharge Time
3 Hour
Weight (Approximate)
37 lb
Width
16.9"
